Thoughts about how to protect the SPE EXPERT 1K-fa from static or lightning desaster
Some years ago, before the SPE
EXPERT time, I used a manual tuner for tuning my antennas.
I have a lot of antennas, and is doing a lot of new antennas, for test and fun,
and my TUNER YEASU FC-301 have only room for 3 PL-connectors,
so there is also a lot of pulling OFF and ON these connectors.
So one day I desided to make a
ANTENNA-SWITCH-BOX - this BOX is
described here...
Just now, the box is placed on
standby for some later use.
So now...

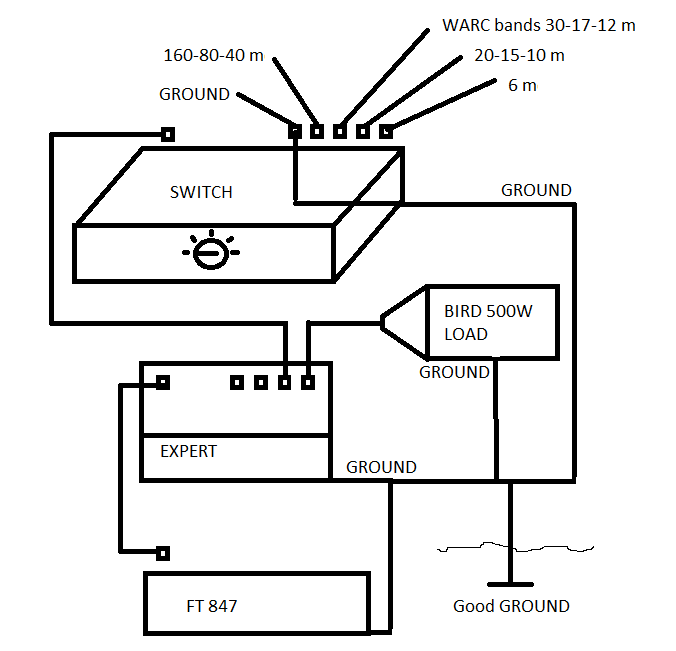

How could I use this to protect my SPE EXPERT 1K-fa ?
This could be an OPTION:
My
SWITCH have 5 ANTENNA-OPTIONS.
When the EXPERT is with NO
POWER, it is by default With POWER to EXPERT, BAND selected, I still have the OPTION to switch ANTENNA-SWITCH to GROUND. Fast and
effektively!!! BUT...
|
