Pictures of my experimenting

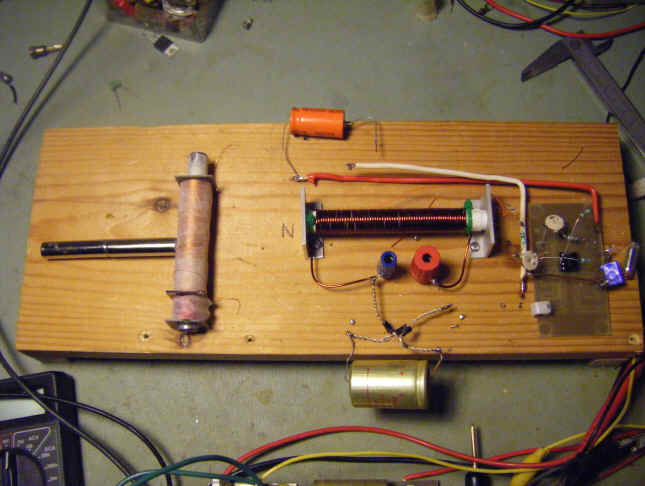

I have made some test coils to measure.

As you se, I used some small magnets just to learn and understand, but very soon i realized that they
ware to small and without the power I needed, so now I have ordered some heavy magnets from
www.supermagnete.de in Germany, hoping they arrive this week.

These new magnets (S-35-20-N) has a heavy power. 35 m.m. in diameter and 20 m.m. high, and they cane lift 38 KG weights.
Handling these I must be very careful. The would crack your harddisk, mobilfon and other devices with the heavy
magnetic field.

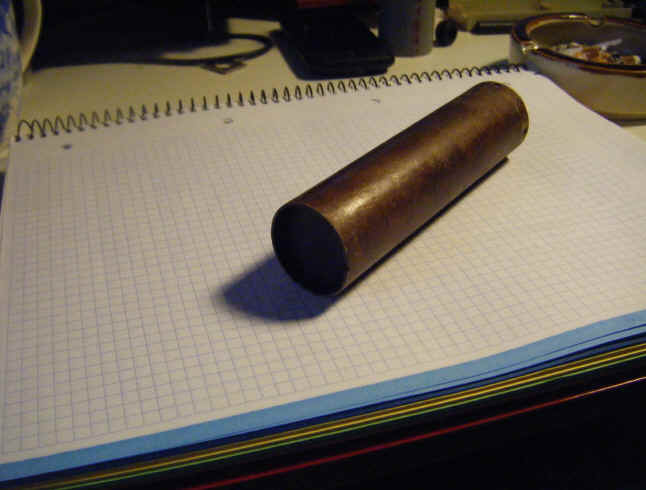

I also realized, that the soft iron magnet core must be greater then these small 10 m.m. x 100 m.m. long rods,
you se at this picture.

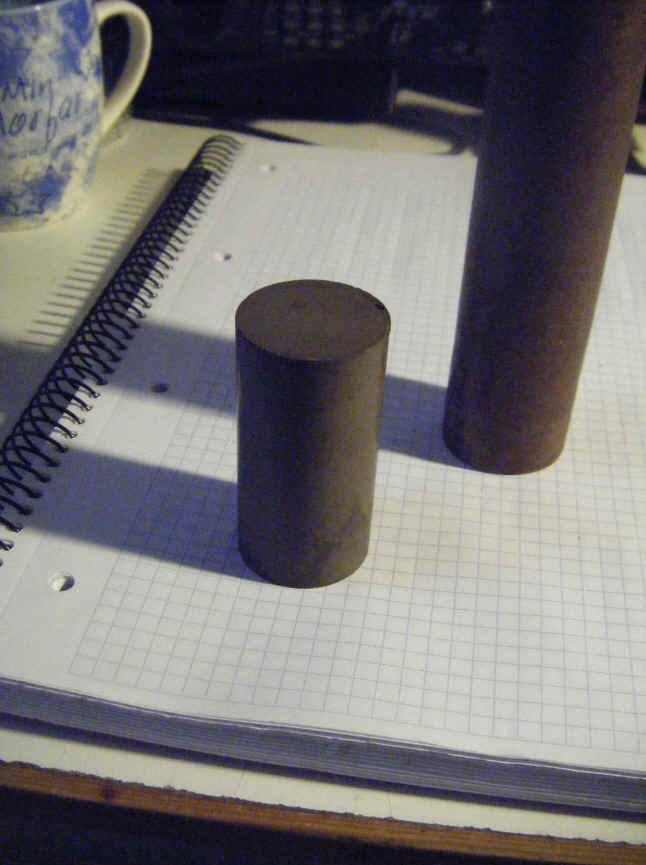

I was lucky to find a ferrite rod at a local HAM-friend.

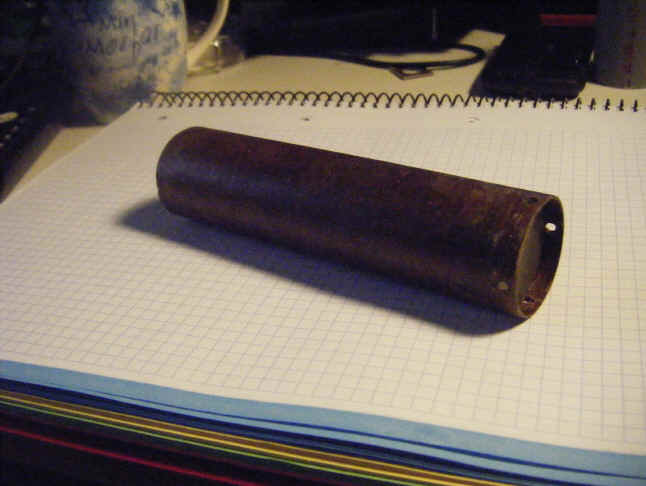

This one have bin used in some old DECCA equipment, he told me, and inside the Pertinax pipe, I found
2 x Ferrite rods 32 x 63 m.m., and they fit perfectly into the Pertinax pipe.

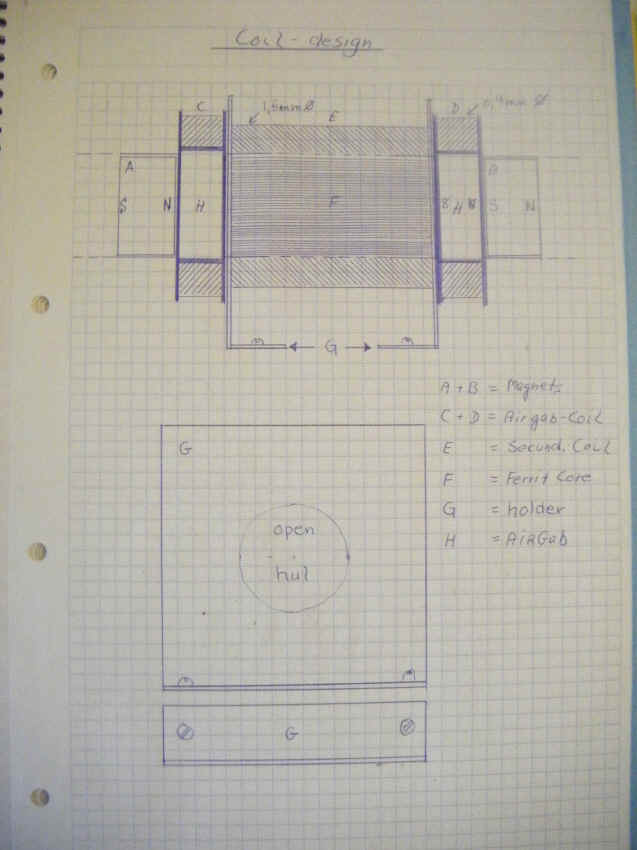

My plan is to make this:

I would use 2 AIR-GAB-Coils C and D, with a magnet A and B, to drive the UNIT.
I have to make sure, that the coils i winded in correct way, to make the STOP-FIELD of the FLUX.

In memory of my late Mother's birds day to day, the 19. January 2011, she would have bin 98 years to day,

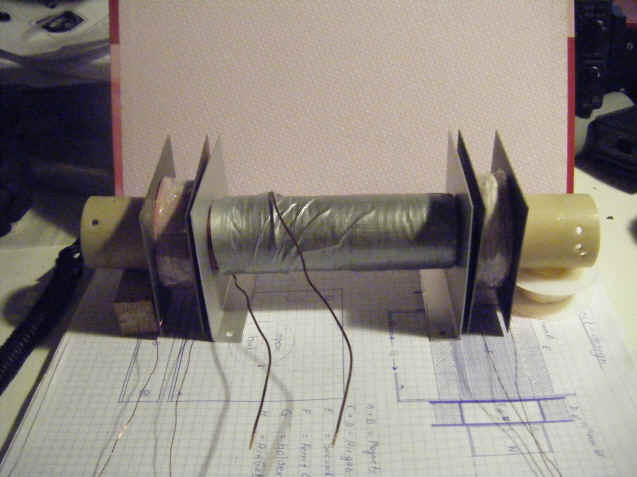

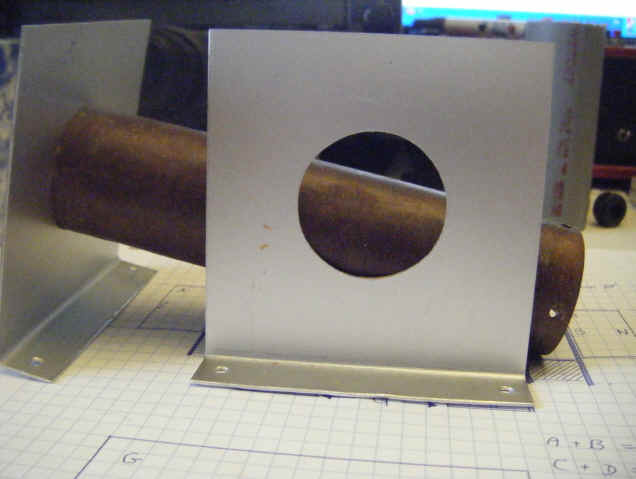

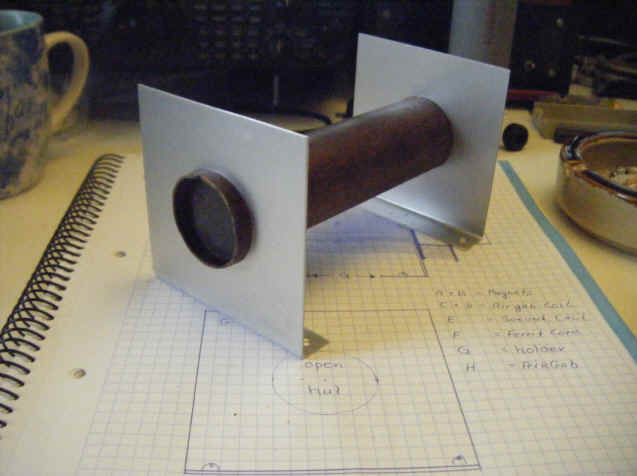

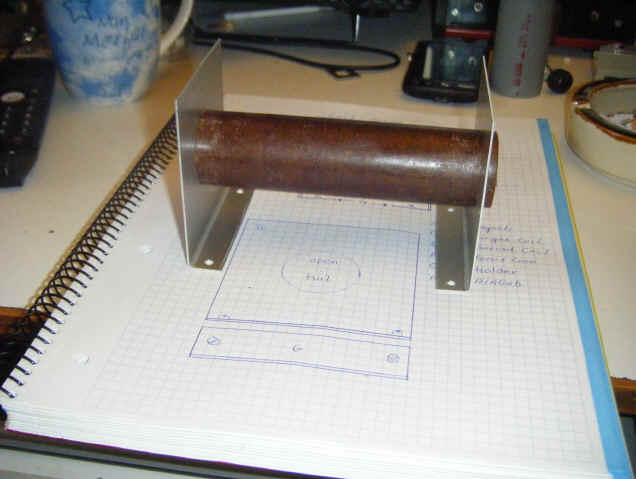

I stared with the aluminum holders.

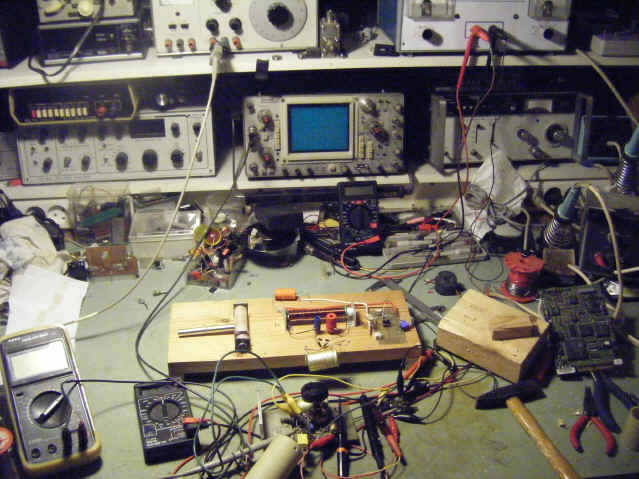

Here is a picture of my Lab:

As you se, it is a HAM-RADIO-LAB, with a lot of mess, hihi

21.01.2011.
To day the magnet arrived.

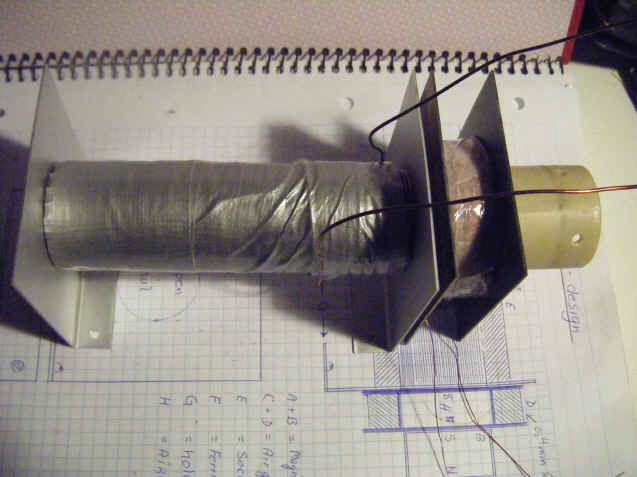

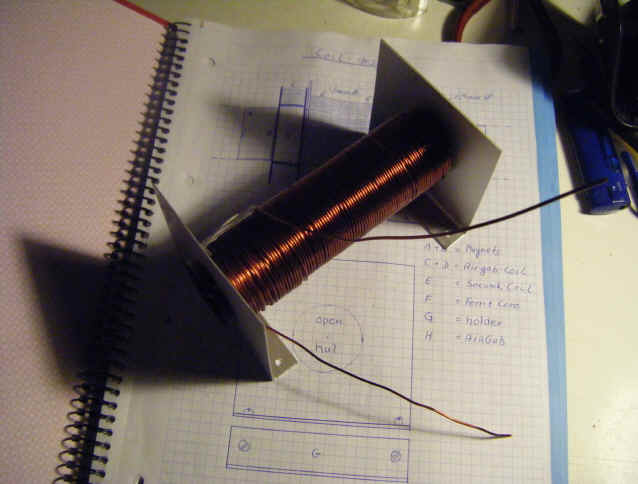

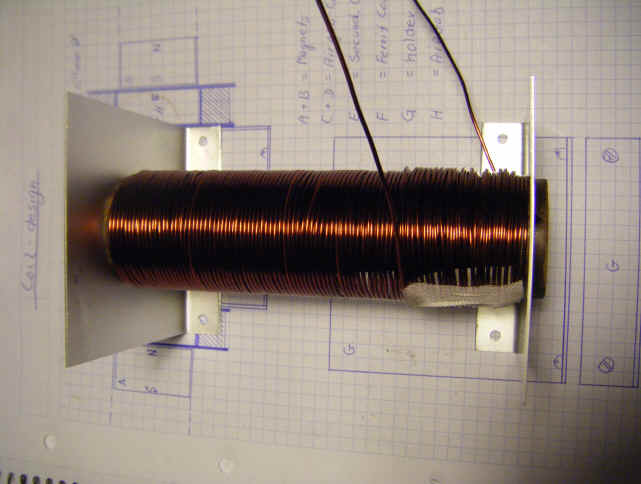

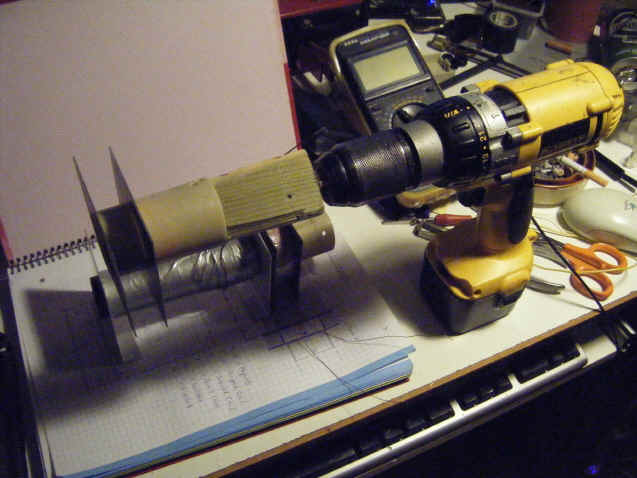

I have started to wind the coil.

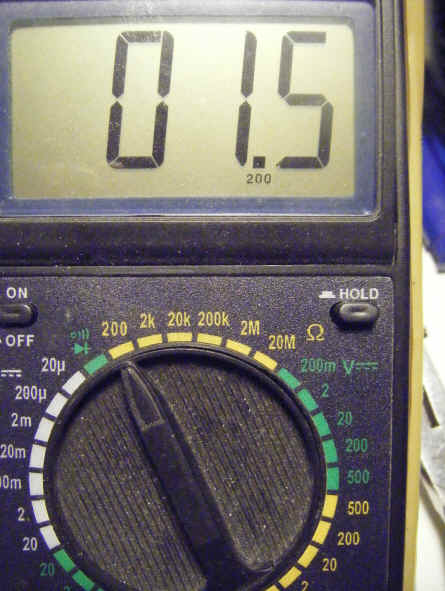

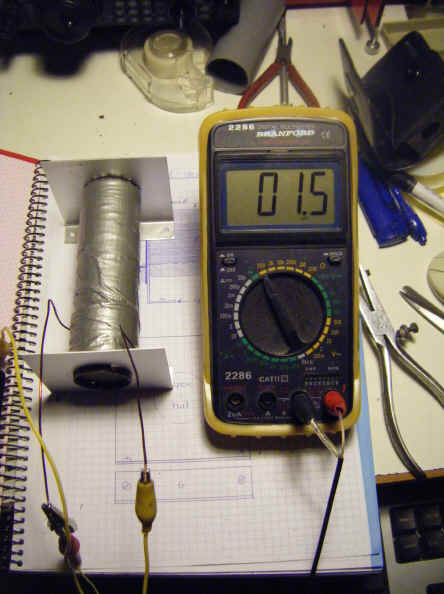

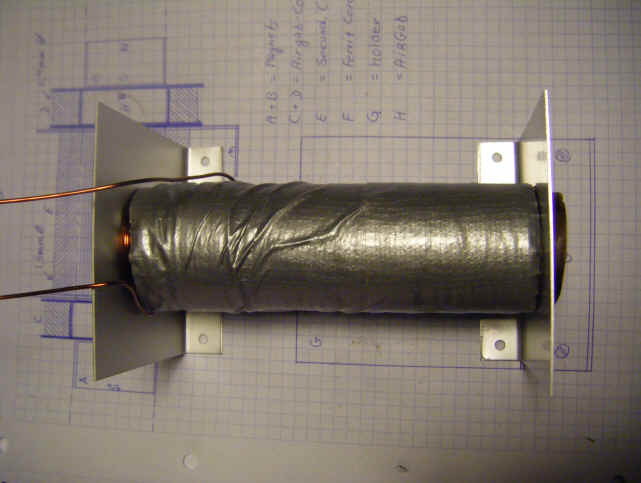

The coils resistant is 1,5 Ohm, and made of 1,25 m.m. Transformer wire. I wish I had some more..
I am sure that I have to experiment more with this coil.

	If there will be enough power from the FLUX, I hope there will be more than enough to drive the unit device.

This is my whirring machine.

The 2 AIR-GAB-coils would be mounted parallel, and give a total of about 11 Ohm. This would use a little more than 1 Amp. with a 12 volt supply.

MORE to Come...
